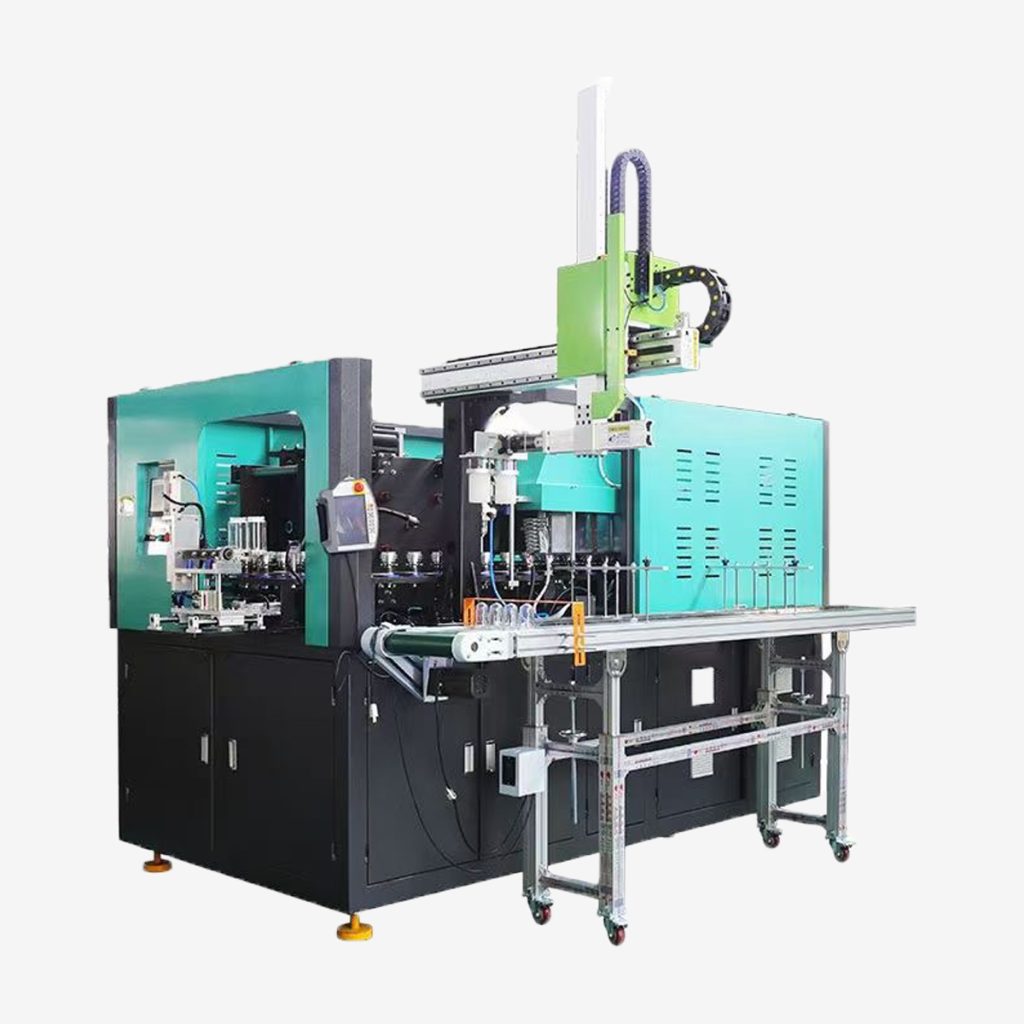

Jar & PET Can Blow Machine

Iem		Unit	N 130-2	N 130-4	N 130-6	N 150-2	N 150-4
Bottle Type	Cavity	PCS	2	4	6	2	4
	Output	BPH	1600-1800	3200-3600	4800-5400	1500-1700	3000-3400
	Max. Volume	L	3	3	3	4	4
	Max. Height	MM	330	330	330	330	330
	Max. Diameter	MM	120	120	120	140	140
	Max. Neck	MM	105	105	105	125	125
Power	Number of Light	PCS	40	50	50	48	60
	Zone of Oven	PCS	4	5	5	4	5
	Power of Light	KW	2	2	2	2	2
	Max. Heating Power	KW	80	100	100	96	120
	Total Power	KW	90	112	112	106	132
	Actual Power	KW	18-22	24-28	24-28	22-26	26-32
Air Pressure	Operation Pressure	KPA	0.75-0.85	0.75-0.85	0.75-0.85	0.75-0.85	0.75-0.85
	Action Air Consumption	M³/MIN	2000	2500	2500	2000	2500
	Blowing Pressure	MPA	2.5-2.85	2.5-2.85	2.5-2.85	2.5-2.85	2.5-2.85
	Blowing Air Consumption	M³/MIN	2500	3000	3500	3000	3500
Machine	Machine Size	M	3.2*1.9*2.3	4.8*1.9*2.3	5.8*1.9*2.3	4.0*1.9*2.3	5.2*1.9*2.3
	Machine Weight	T	4.5	7.5	8.5	5.5	8
